Thursday, August 6, 2009

Report registration steps

Report Registration Steps:
====================
1)Develop the report (.rdf)as per client Requirement by using reports 6i Builder

2)Move the report from Local mechine into Server
CUS_TOP\11.5.0\Reports\US\ .rdf
PO_TOP\11.5.0\Reports\US\ .rdf

3)Select System Administrator and create EXECUTABLE
1)Executable Name
2)ApplicationName
3)Execution Method
4)Report(.rdf) file Name

4)Create Concurrent Program and attach 1)EXECUTABLE
2)PARAMETERS
3)INCOMPATIBILITIES
5)Create Request Group and attach Concurrent Program

6)Create Responsibility 1)Request Group
2)Data Group
3)Menu
7)Create user, attach Responsibility to the user.

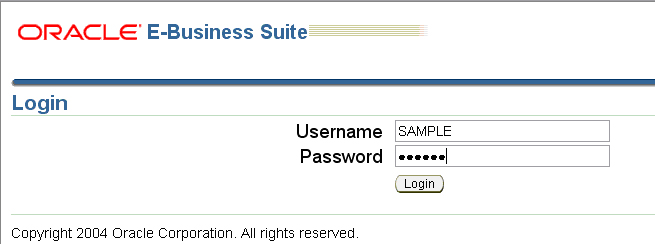

8)User will select the Responsibility and goto SRS(Standard Request Submission) Window
submit the Request.



Navigations:
============

Executable = Concurrent=>Program=>Executable
Concurrent Program = Concurrent=>Program=>Define
Request Group = Security=>Responsibility=>Request
Responsibility = Security=>responsibility=>Define
User = Security=>User=>Define

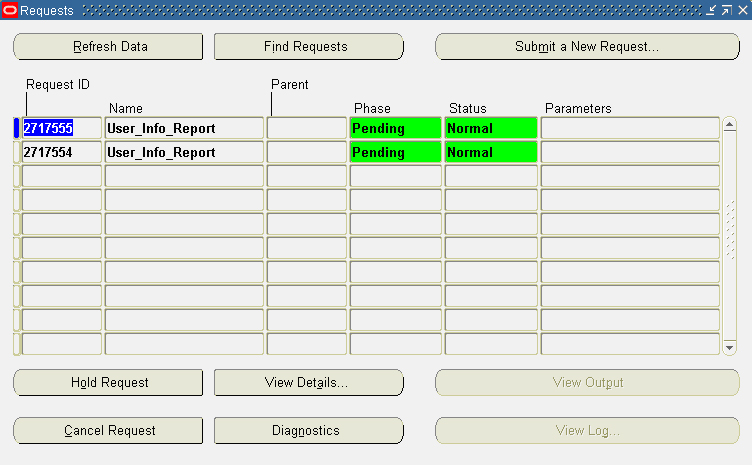

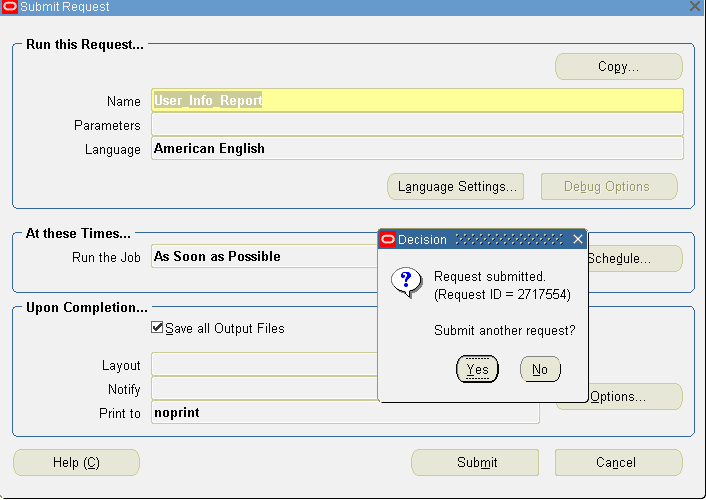

SRS Window = View Menu=>Request =>Submit New request=>Ok=>Select Program
=>Submit=>No=>Find=>View Output

Click Next
Click Finish.

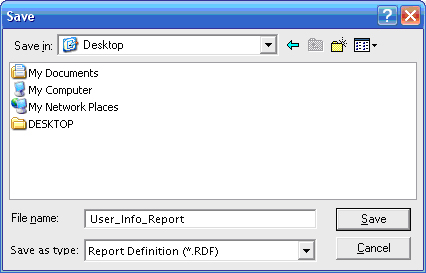

Save the report and move it to the server(APPL_TOP\po\11.5.0\reports\US).

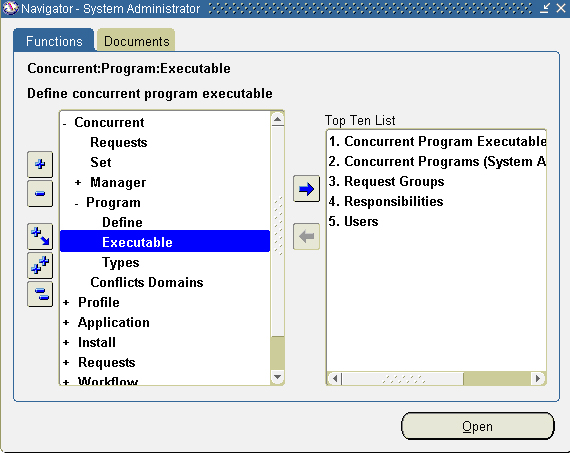

Navigation: System Administrator : Concurrent > Program > Executable

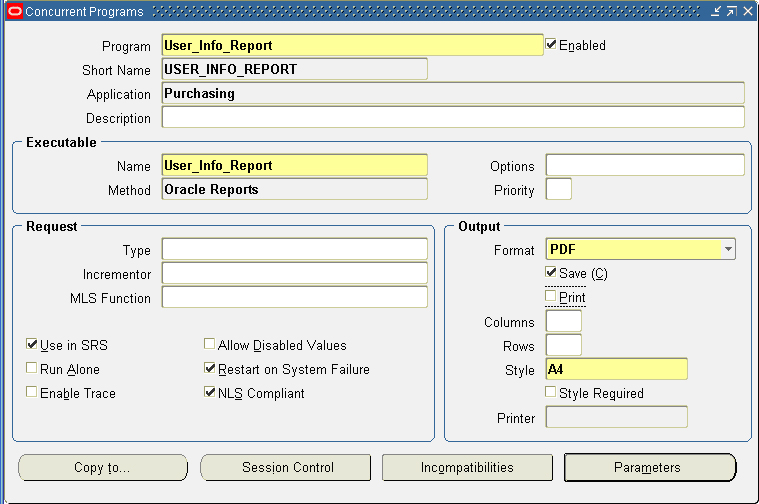

Navigation: Concurrent > Program > Define
Request Group Navigation: Security > Responsibility > Request

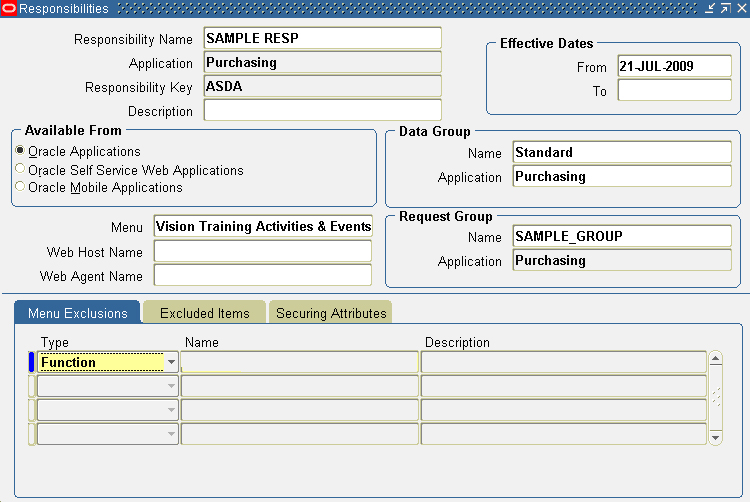

Navigation: Security > Responsibility > Define

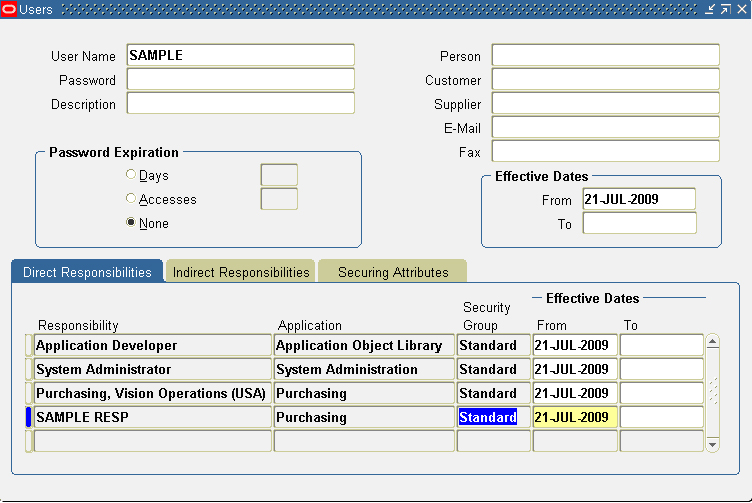

Navigation: Security > User > Define
.
